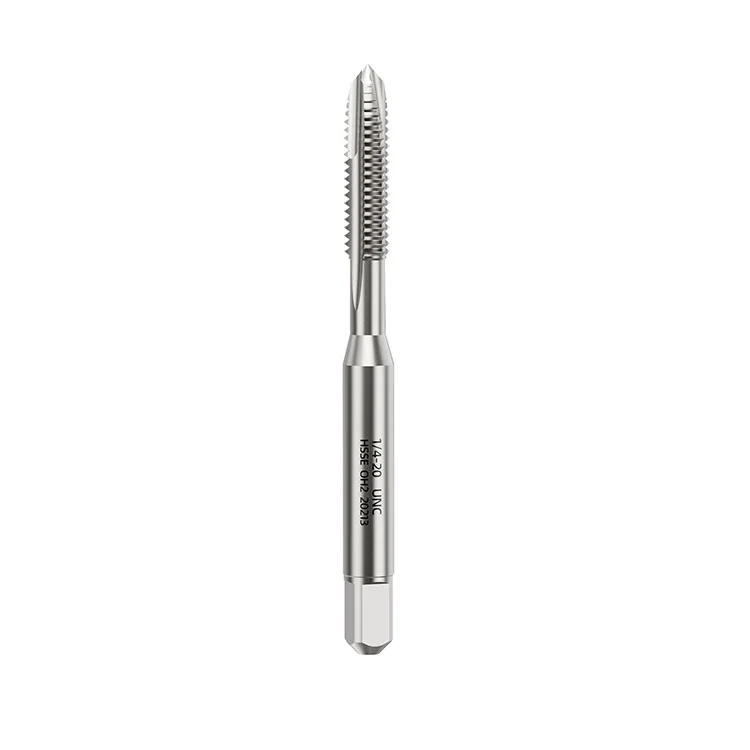

Standard Spiral Point Tap
Saikeiny Tools is a trusted provider of Standard Spiral Point Taps, delivering precise threading solutions for industrial needs. Manufactured from high-quality HSS-E material, these taps are designed for through-hole threading in materials such as general steel, alloy steel (HRC35 and below), cast steel, cast iron, and stainless steel. With advanced design and excellent wear resistance, Saikeiny offers bulk orders, customized options, and competitive pricing to meet diverse global demands.
The Standard Spiral Point Tap from Saikeiny Tools Co., Ltd. is engineered to deliver reliable and efficient threading for through-hole machining. Manufactured with HSS-E (High-Speed Steel Cobalt) material, these taps offer exceptional strength, wear resistance, and heat tolerance, making them ideal for processing a variety of metals, including steel alloys, cast iron, and stainless steel.
Featuring a specially designed groove shape and optimized tooth geometry, these taps provide smooth and precise threading while minimizing chip accumulation. With rigorous performance testing and innovative engineering, our spiral point taps enhance machining efficiency and significantly reduce tool consumption. They are suitable for use in CNC machines, tapping machines, and manual threading tools, offering versatility across diverse industrial environments.
Features:
1. High-Performance Material: Crafted from HSS-E, these taps provide outstanding heat resistance, wear resistance, and durability.
2. Optimized Groove and Tooth Design: Special groove shape and tooth geometry ensure efficient chip removal, smooth threading, and longer tool life.
3. Exceptional Heat and Wear Resistance: Ideal for threading materials such as HRC35 alloy steel, cast steel, cast iron, and stainless steel, maintaining performance even under challenging conditions.
4. Customizable Solutions: Offers bulk orders, custom designs, and ISO-certified quality, ensuring precision and customer satisfaction.
Applications:
Application Range:
● Designed for through-hole threading in materials such as general steel, alloy steel (HRC35 and below), cast steel, cast iron, and stainless steel.
● Widely used in automotive manufacturing, aerospace, precision engineering, and mold-making industries.
Usage Recommendations:
● Suitable for use with tapping oil or coolants to improve thread quality and reduce tool wear.
● Compatible with CNC machines, manual threading tools, and tapping machines for seamless operations.
● Clean thoroughly after use and apply anti-rust oil to prolong service life and prevent corrosion.
Product Specifications
| Size | Pitch | Shank diameter | Flute length | Overall length |
| M3 | 0.5 | 3.15 | 11 | 48 |
| M4 | 0.7 | 4 | 13 | 53 |
| M5 | 0.8 | 5 | 16 | 58 |
| M6 | 1 | 6.3 | 19 | 66 |
| M8 | 1.25 | 6.3 | 22 | 72 |
| M8×1 | 1 | 6.3 | 22 | 72 |
| M10 | 1.5 | 8 | 24 | 80 |
| M10×1.25 | 1.25 | 8 | 24 | 80 |
| M10×1 | 1 | 8 | 24 | 80 |
| M12 | 1.75 | 9 | 29 | 89 |
| M12×1.5 | 1.5 | 9 | 29 | 89 |
| M12×1.25 | 1.25 | 9 | 29 | 89 |
| M12×1 | 1 | 9 | 22 | 80 |
| M14 | 2 | 11.2 | 30 | 95 |
| M14×1.5 | 1.5 | 11.2 | 30 | 95 |
| M14×1.25 | 1.25 | 11.2 | 30 | 95 |
| M14×1 | 1 | 11.2 | 22 | 87 |
| M16 | 2 | 12.5 | 32 | 102 |
| M16×1.5 | 1.5 | 12.5 | 32 | 102 |
| M16×1 | 1 | 12.5 | 22 | 92 |
| M18 | 2.5 | 14 | 37 | 112 |
| M18×2 | 2 | 14 | 37 | 112 |
| M18×1.5 | 1.5 | 14 | 37 | 112 |
| M18×1 | 1 | 14 | 22 | 97 |
| M20 | 2.5 | 14 | 37 | 112 |
| M20×2 | 2 | 14 | 37 | 112 |
| M20×1.5 | 1.5 | 14 | 37 | 112 |
| M20×1 | 1 | 14 | 22 | 102 |
| M22 | 2.5 | 16 | 38 | 118 |
| M22×2 | 2 | 16 | 38 | 118 |
| M22×1.5 | 1.5 | 16 | 38 | 118 |
| M22×1 | 1 | 16 | 24 | 109 |
| M24 | 3 | 18 | 45 | 130 |
| M24×2 | 2 | 18 | 45 | 130 |
| M24×1.5 | 1.5 | 18 | 45 | 130 |
| M24×1 | 1 | 18 | 24 | 114 |
| M27 | 3 | 20 | 45 | 135 |
| M27×2 | 2 | 20 | 37 | 127 |
| M27×1.5 | 1.5 | 20 | 37 | 127 |
| M27×1 | 1 | 20 | 25 | 120 |
| M30 | 3.5 | 20 | 48 | 138 |
| M30×2 | 2 | 20 | 37 | 127 |
| M30×1.5 | 1.5 | 20 | 37 | 127 |
| M30×1 | 1 | 20 | 25 | 120 |
| M33 | 3.5 | 22.4 | 51 | 151 |
| M33×2 | 2 | 22.4 | 37 | 137 |
| M33×1.5 | 1.5 | 22.4 | 37 | 137 |
| M36 | 4 | 25 | 57 | 162 |
| M36×3 | 3 | 25 | 57 | 162 |
| M36×2 | 2 | 25 | 39 | 144 |
| M36×1.5 | 1.5 | 25 | 39 | 144 |
