What Is a Thread Die – And How to Use It for External Threading?
What is a Thread Die?
A thread die is a tool used to cut external threads on rods, bolts, or pipes. It works by shaping the outer surface of a cylindrical object into a helical groove—forming a threaded profile that matches nuts or tapped holes.

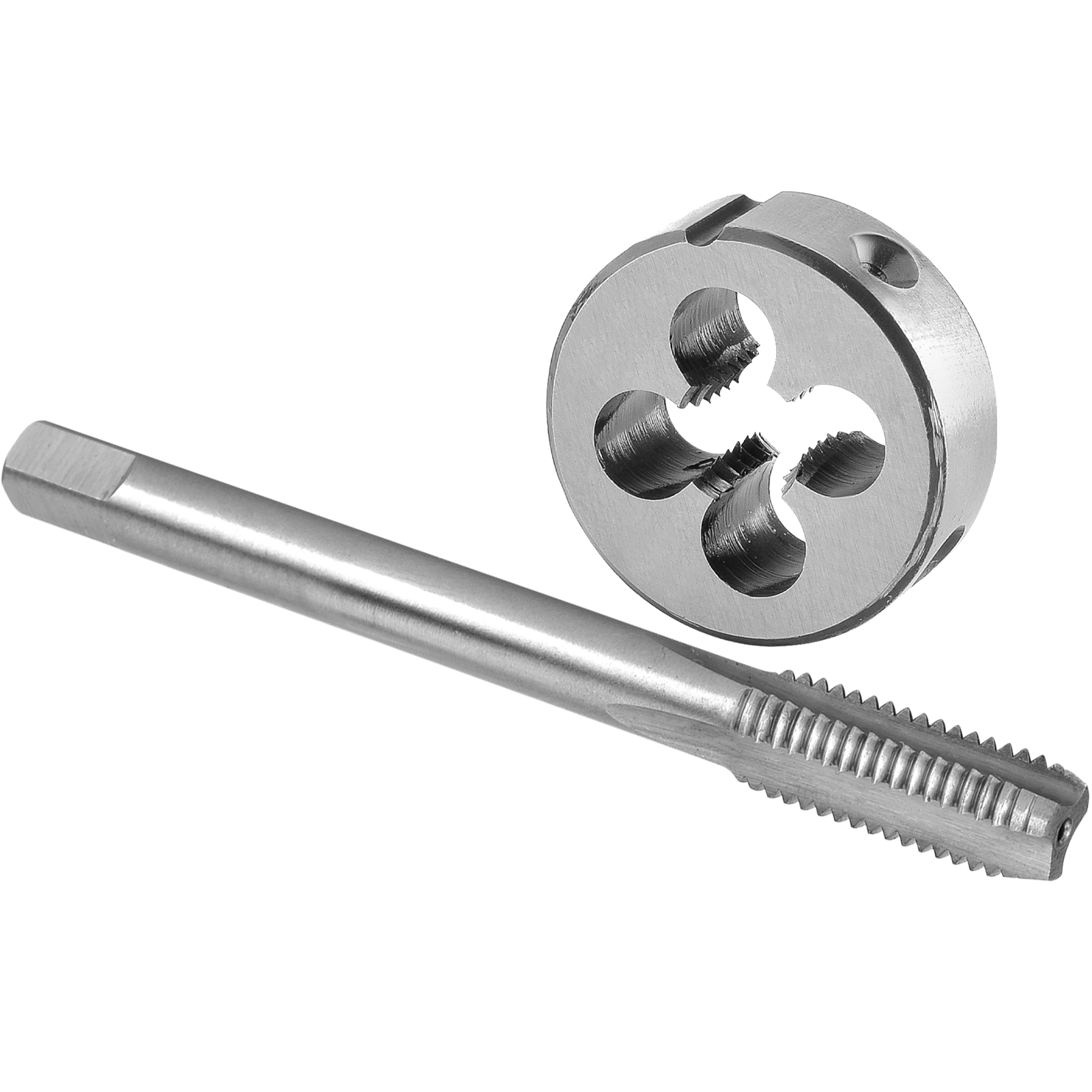

Unlike taps (which cut internal threads), dies are used for external threading. See below for comparison:

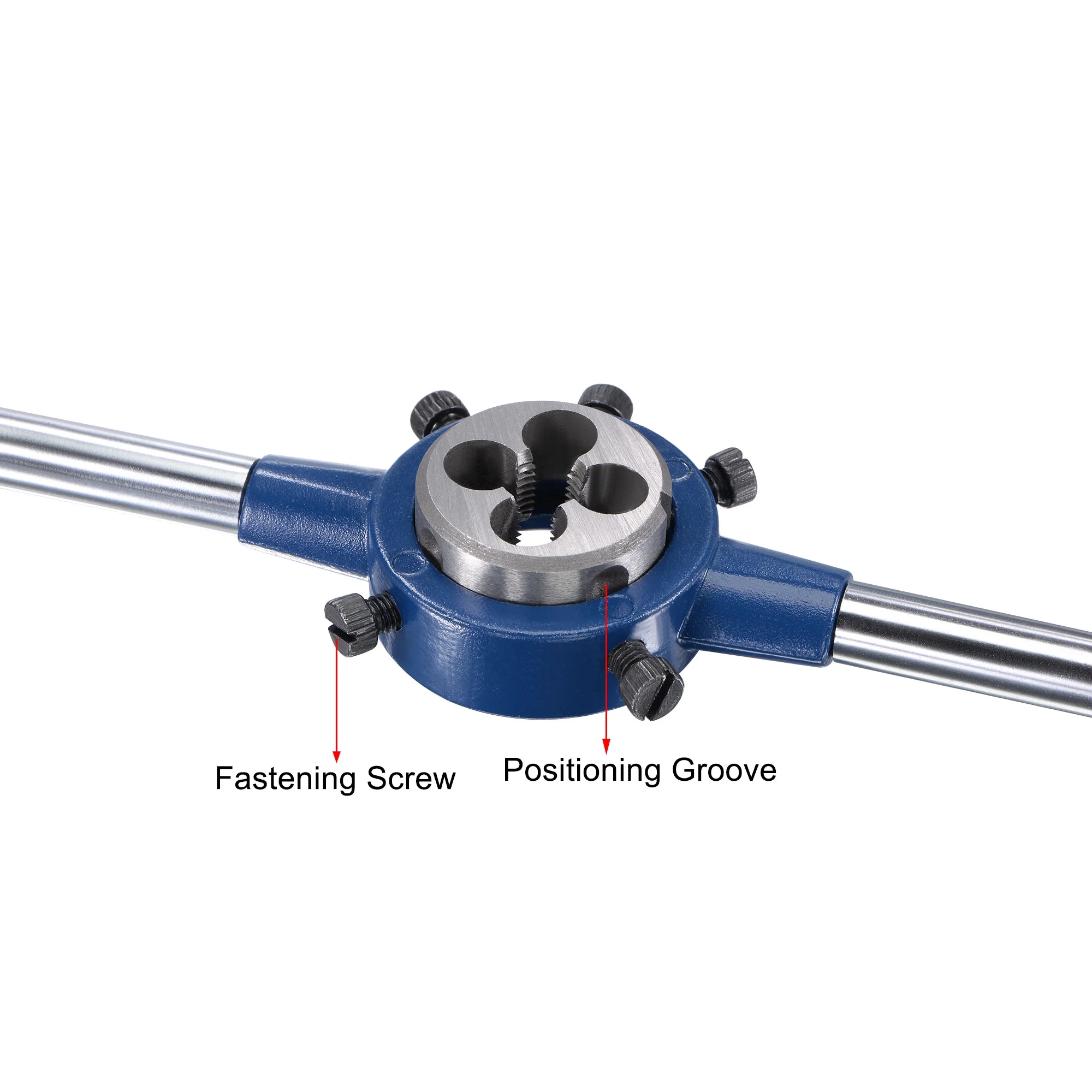

Structure of a Thread Die Holder
A thread die is typically mounted in a die stock (holder), which helps maintain alignment and torque during operation. Let's take a closer look:
Fastening Screws – Lock the die into place securely
Positioning Groove – Ensures correct alignment of the die teeth with the rod
Round Die – Interchangeable cutting component made of high-speed steel or alloy steel
How to Use a Thread Die
Chamfer the Rod End: Use a file to slightly taper the end of the rod.
Secure the Die: Place the die into the holder, aligning the groove with the set screw.
Apply Cutting Oil: Reduces friction and increases die life.
Start Threading: Apply gentle pressure and turn the holder clockwise.
Back Off Frequently: Every 1–2 turns, reverse slightly to break chips.
Clean and Inspect: Brush off chips and test thread fit with a nut.
Why Choose Saikeiny Tools?
Precision Ground Dies for accurate threads
Premium HSS or Alloy Steel for extended tool life
Custom Sets Available for export and OEM needs
Metric (M3–M24) and Imperial (UNC/UNF/BSP) series in stock
